Stratus KLC Aeration Kit - 1000-7500 gallons - 1 diffuser

Stratus KLC Aeration Kit - 1000-7500 gallons - 1 diffuser

Product Code: LA1

Regular price $229.99 $196.00 Sale

Ensure adequate oxygen levels and circulation during hot summer months and de-icing capability during freezing months with the Stratus KLC Linear Aeration Systems. 4 different kits are available with 1 to 4 diffusers for ponds up to 30,000 gallons. These systems feature quiet, energy efficient compressors with CUL and UL listing for outdoor use, and they carry a 3 year warranty!

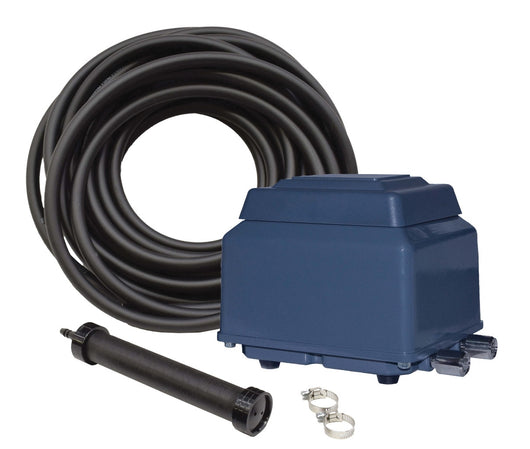

All kits include a linear diaphragm compressor with 6' power cord, rubber membrane diffuser(s), connectors, weighted airline, and installation and maintenance instructions.

The table below represents Cubic Feet Per Minute (CFM) of air produced by compressors at various depths of water.


Item # Pond Size (Gallons)*

Number of 8" Diffusers

Length of Tubing Included Air Flow (CFM)** Max Depth Watts



Cost of Operation

LA1 1K-7.5K One 25 feet 1.3 6 feet 23 $1.51
LA2 2K-15K Two 50 feet 2.1 6 feet 36 $2.37
LA3 3K-22.5K Three 75 feet 3.1 6 feet 60 $3.94
LA4 4K-30K Four 100 feet 3.7 6 feet 70 $4.60
* Size pond that these systems will aerate depends on depth, fish load, filtration capacity and if it is for winter or summer aeration. Contact Keystone Hatcheries for sizing recommendations.
**Airflow rates given are max flow. Rate will decrease with depth.
***Based on 24/7 operation at $.09 per kWh. Actual cost will vary with operating conditions and local electrical rates
